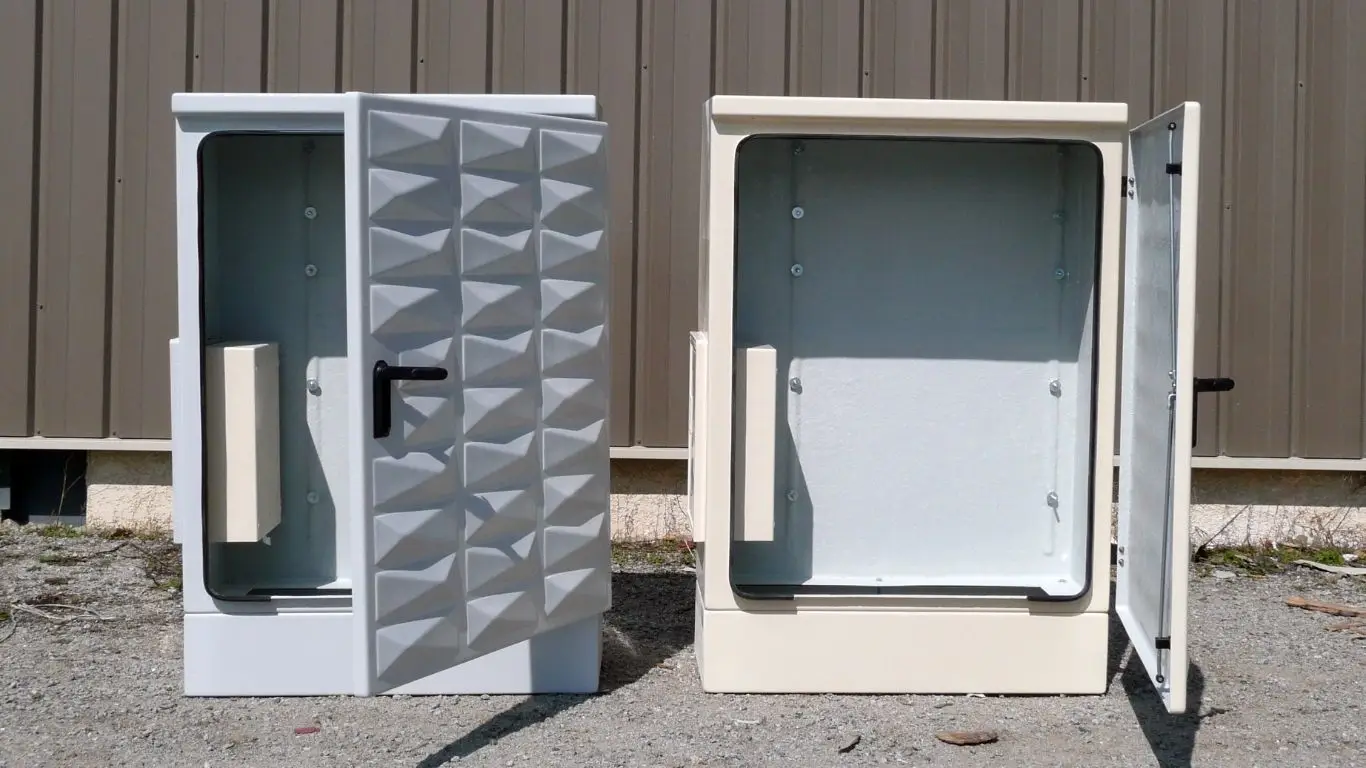

Standard cabinets
300x250x160mm à 1000x800x340mm
Special features that make difference
Door frame edging solely on left and right hand sides – increased cabling area.No lateral supports
– increased cabling and drilling areas, as well as possibility for cut-outs on the sides.
Fittings at the back of the cabinet for direct attachment of a DIN Rail.
Mounting brackets provided with every cabinet at no extra cost.
International Protection Degree IP65 / Mechanical Resistance IK10
Cabinets specifically used to house electrical and electronic equipment in a corrosive environment.
These cabinets are adapted for a range of uses and suit damp and corrosive indoor environments just as well as outdoor settings.
Extremely resistant to corrosion
Technical characteristics:
– Fibre-glass reinforced polyester cabinet
– Double insulated cabinet (class II)
– Protection Degree IP 66 (in accordance with EN60529)
– Mechanical Resistance Impact IK10 (in accordance with EN62262).
– Electrically insulating material.
– Moisture resistant material
– Resistant to extreme temperatures (from -30˚C to +120˚C)
– Colour RAL 7035
Standard accessoires:
– Inserts, 25mm fittings at the back of the cabinet allowing direct attachment of parts using standard cap screws.
– Top and bottom awnings integrated into cabinet mould.
– ¼ turn double bar locking system.
– Set of 4 polyamide swivelling mounting brackets.
– Grid pattern on the door to facilitate drilling.
– JPolyurethane watertight sealant fitted directly onto the door.
-Cast aluminium hinges – highly resistant to corrosion.
Optional accessories:
– Mounting plate in full/perforated galvanised steel or full polyester.
– Door window.
– Inserts on the door to allow attachment of accessories.
– Other locking systems: Ronis 1/4 turn lock, triangle…
– Interior pivoting face-plate.
– Modular frame.
– Equipment for attaching to beam, pole or post.
– Air vents, ventilation
– Notched Bars: allowing you to adjust the position of the connector board depth-wise.
